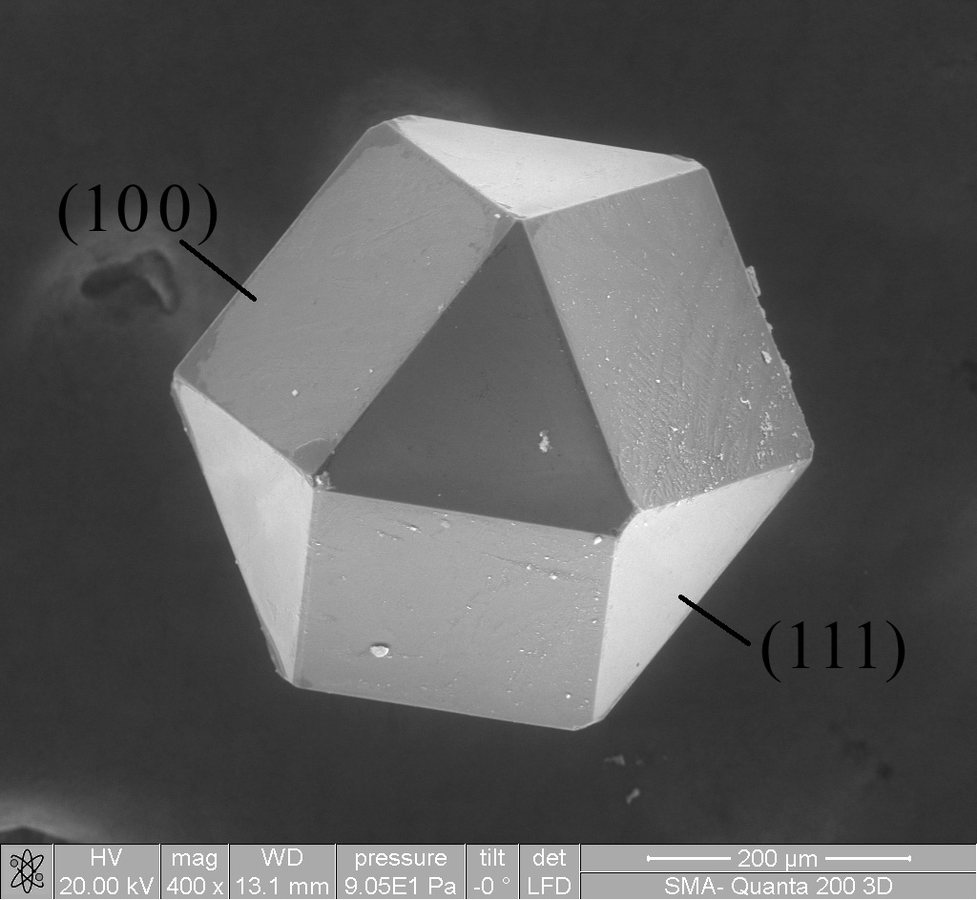

Materials scientists evaluating new compounds for solar panels, microLED displays, and other optoelectronic devices have long relied on steady-state photoluminescence as their first analytical step. The technique, which involves optically exciting a sample and recording the intensity and wavelength of re-emitted photons, offers a fast and non-destructive window into a material's electronic structure and emission characteristics. But a growing body of work suggests that these spectra, when used in isolation, can actively mislead.
The core problem is that steady-state photoluminescence provides a time-integrated and often spatially averaged view of emission. It records a static equilibrium in which charge carrier generation balances recombination, without revealing how excited carriers actually evolve. Two semiconductor thin films might produce identical steady-state spectra while behaving completely differently in a finished device. One could have long carrier lifetimes consistent with low non-radiative losses, making it suitable for solar cells, while the other suffers from high defect densities that are masked by strong light absorption or intense excitation. Conversely, weak emission does not necessarily signal poor material quality; in layered solar cells, dim luminescence often indicates fast, beneficial charge extraction across an interface rather than harmful defect recombination.
Time-resolved photoluminescence addresses part of this gap. Instead of continuously illuminating a sample, TRPL uses a short laser pulse and measures how emission intensity decays afterward, revealing carrier dynamics across timescales from picoseconds to microseconds. It can distinguish regions with long-lived emission, consistent with efficient radiative recombination, from those with fast decay caused by defect recombination. Yet TRPL alone still averages over space, leaving a critical dimension unexamined.
Spatially resolved TRPL closes that gap by combining a high-precision motorized XY stage with precise timing, producing two-dimensional maps that directly correlate localized structural features such as grain boundaries and defects with variations in carrier kinetics across a surface. A third technique, time-resolved emission spectroscopy, adds spectral resolution by measuring how emission dynamics vary across different wavelengths. Where TRPL reveals kinetics over time and spatially resolved TRPL locates variations in space, TRES shows how the emission spectrum itself evolves after excitation, allowing researchers to track changes in the distribution of photon energies and understand the mechanisms underlying material behavior.
Reconciling insights across separate instruments, however, is slow and error-prone. Microscopic differences between samples, or even between positions within a single sample, can dramatically alter emission spectra. Moving a sample between instruments risks physical damage or introduces delays that lead to sample degradation. More reliable physical insight comes when temporal, spatial, and spectral factors are recorded correlatively on the exact same sample region.
That need for correlation has driven the development of integrated workflow platforms such as PicoQuant's Solira, which brings steady-state PL, TRPL, spatially resolved TRPL, and TRES into a single configurable microscope system. When combined with a complementary kit, the platform also supports hyperspectral imaging and other techniques required for different scientific questions. The integrated approach allows a materials scientist to identify relevant emission bands at selected points of interest with steady-state PL, measure the associated decay kinetics with TRPL, and then apply TRES to resolve how those dynamics vary across the spectrum.
For the optoelectronics field, the shift toward correlative characterization represents more than a technical convenience. As halide perovskites and semiconductor compounds move closer to commercial deployment in solar modules and display technologies, the ability to separate beneficial charge extraction from harmful defect recombination, and to map those processes at the microscale, could determine which candidate materials ultimately succeed in real-world devices.
